LANCAIR INTERNATIONAL, LLC

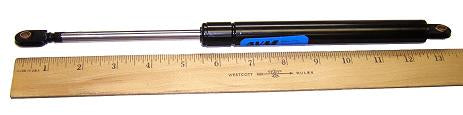

GM028 GAS SPRING, NOSE GEAR 100lbs

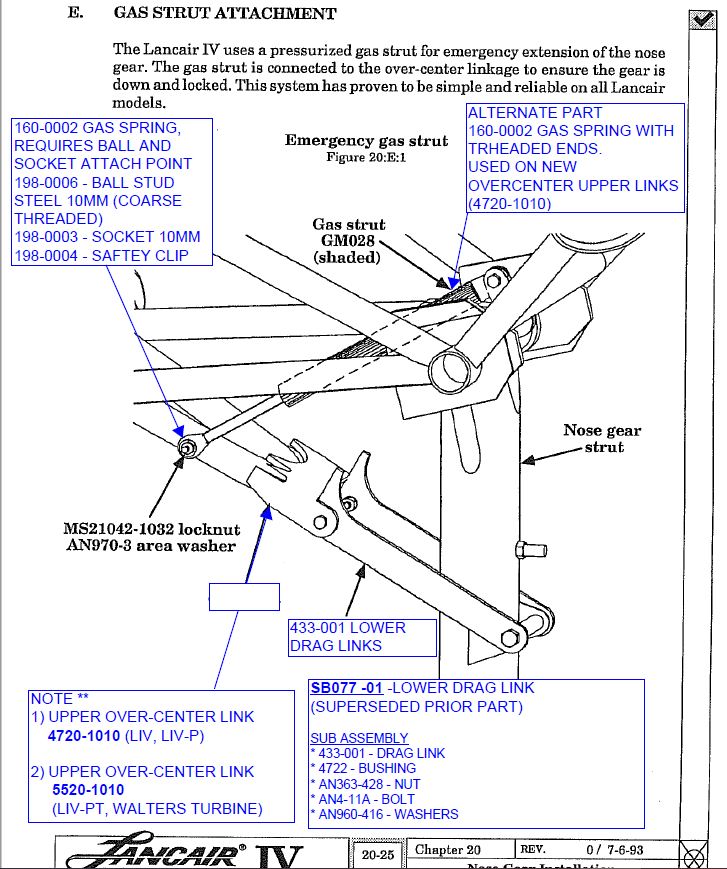

GAS SPRING, 100psi, WELDMENT EYELET ENDS WITH BUSHINGS (GM028-01).  SPRING IS USED TO EXTEND THE NOSE GEAR IN THE EVENT OF HYDRAULIC FAILURE.

NOTE: NOT FOR SOME LANCAIR IV'S WITH NEW STYLE OVER-CENTER LINK (P/N 4720-1010).  IF YOUR AIRCRAFT HAS NEW STYLE OVER-CENTER LINK REFER TO GAS SPRING (P/N 160-0002)

Aircraft: L235, L320, 360,LIV, LIV-P, LIV-PT
Category:  Landing Gear

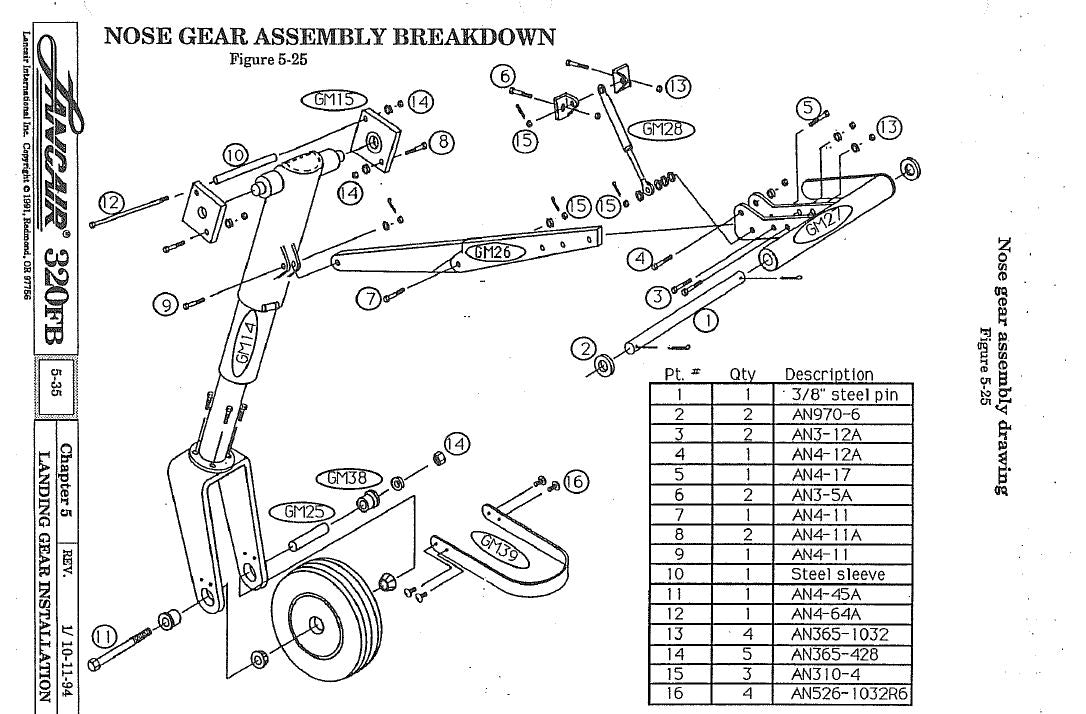

Manual: L320 Chapter 5 (https://lancair.com/320-360/)

Manual: LIV Chapter 20 (https://lancair.com/iv-ivp/)
